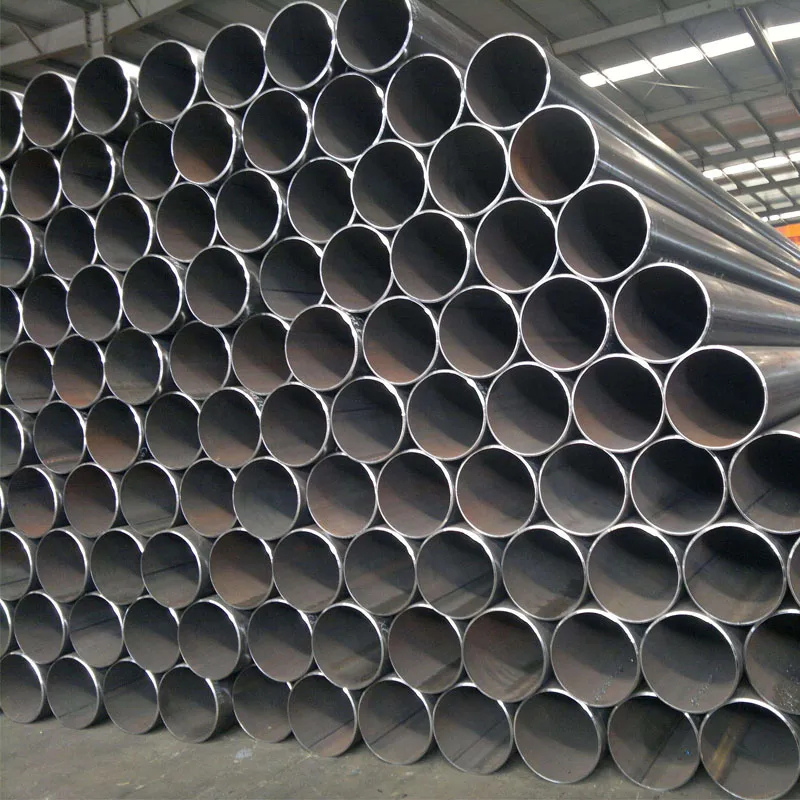

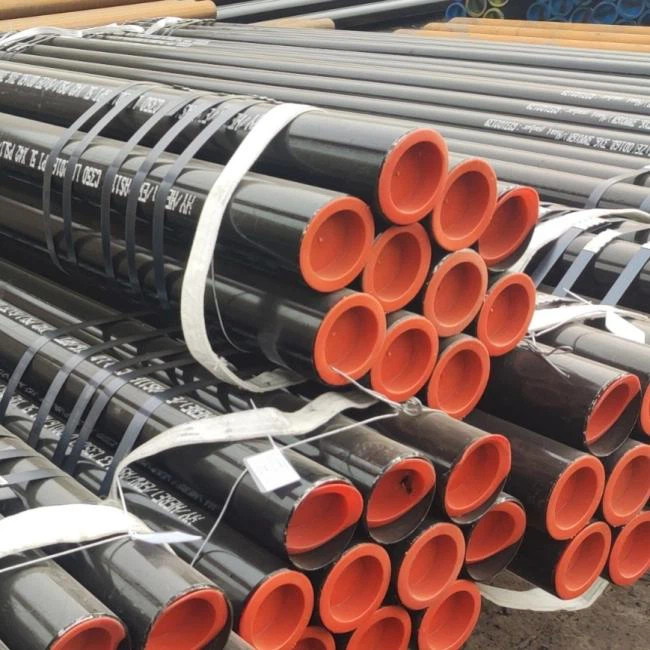

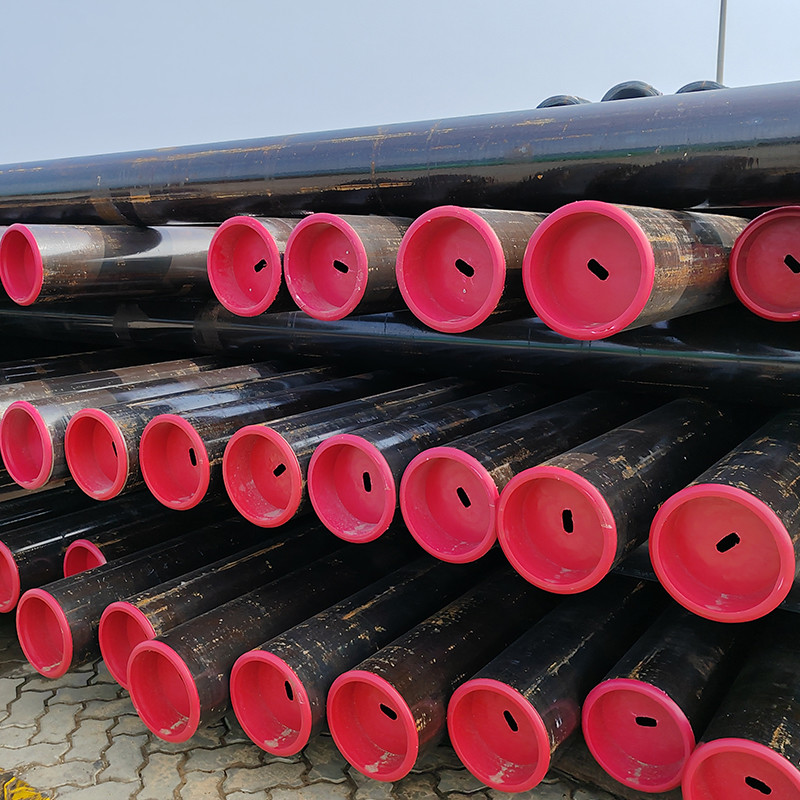

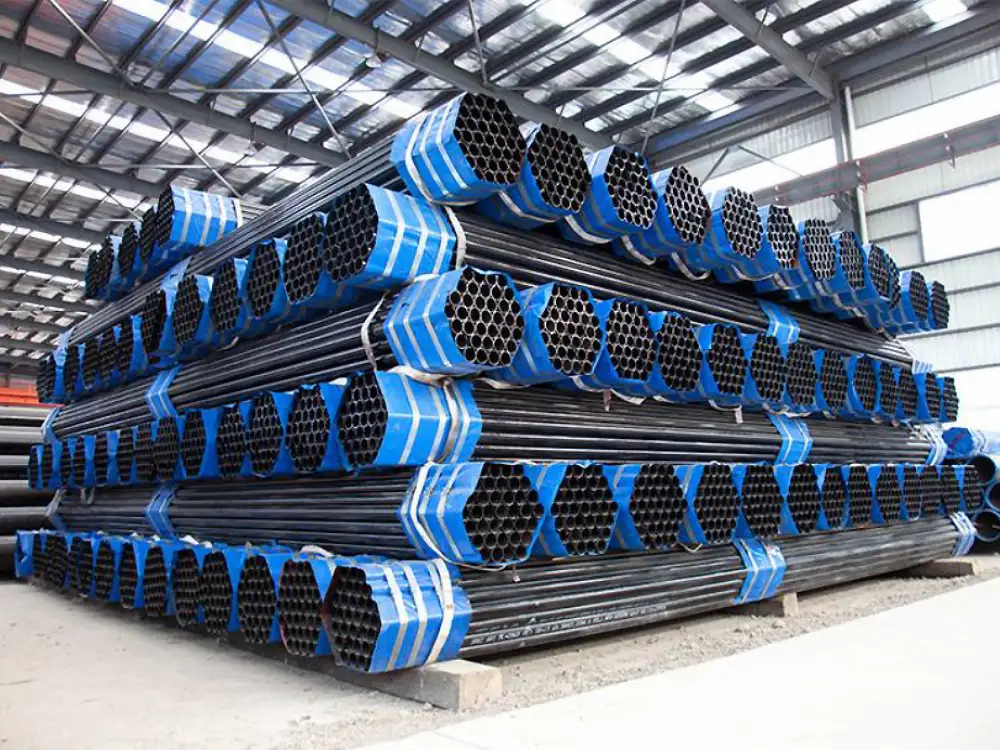

ERW / HFW Pipe
"Efficiency & Precision"
Electric Resistance Welded / High Frequency Welded. The standard for cost-effective piping.
"The High-Speed Highway"
Just as highways move traffic efficiently, ERW pipes are mass-produced with high precision to move fluids across cities. They offer the best balance between performance and cost.
Produced by cold-forming a steel coil into a cylinder and welding the seam using electrical resistance. HFW is a higher quality variant often used for energy pipelines (Line Pipe). It is widely used for city gas lines, water distribution, and structural columns.
Supply Dimensions
| Item | Specification | Remarks |
|---|---|---|
| Outer Diameter | 1/2" ~ 26" (21.3 mm ~ 660.4 mm) | More than 24 inches need to be checked for molding facilities (Max 26") |
| Wall Thickness | 1.2 ~ 25.4 mm (SCH 10 ~ SCH 80) | Coil thickness determined (Uniform Thickness) |
| Length | 6.0 ~ 18.0 m | Basic 6m and 12m (Custom Length Available) |
